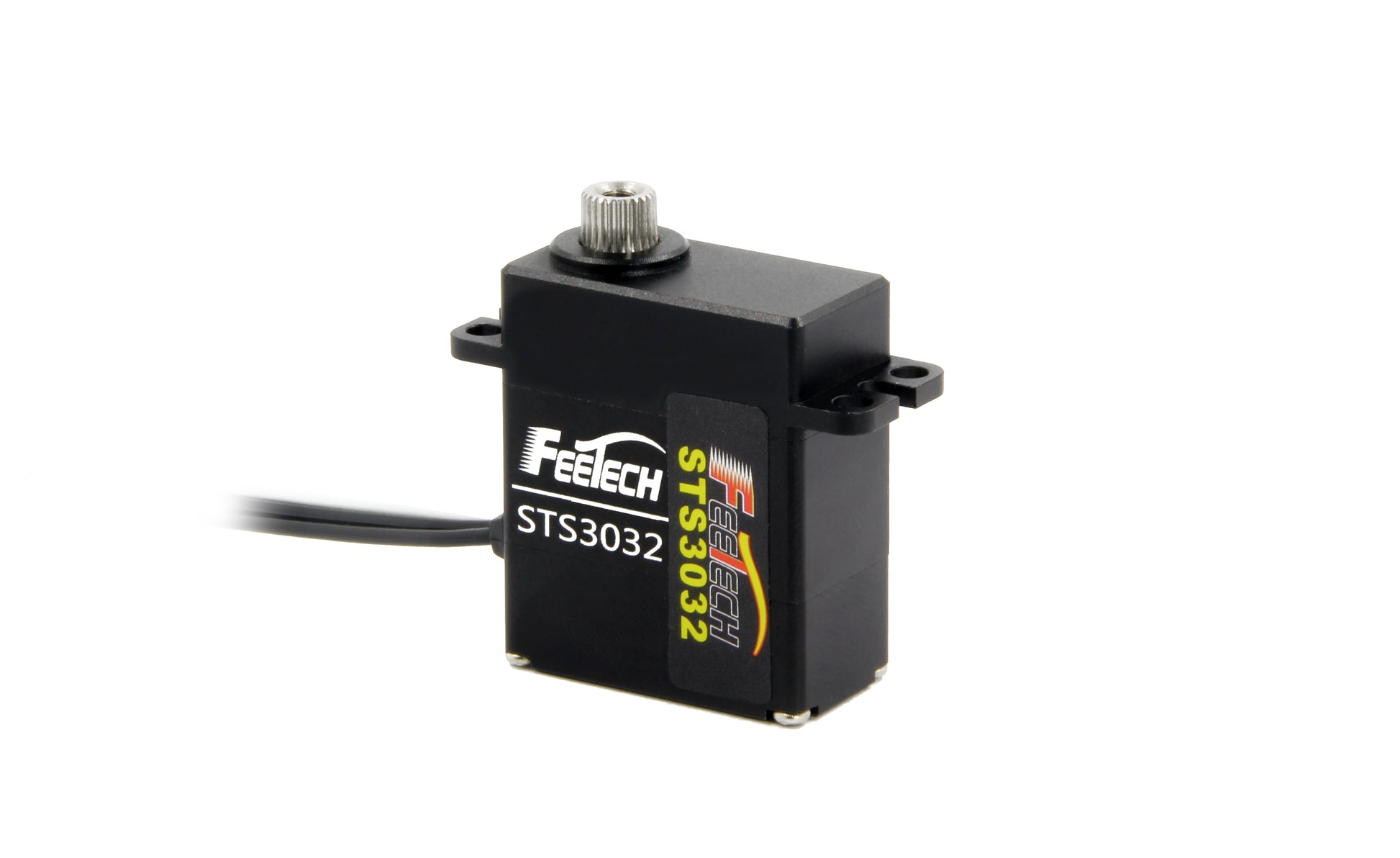

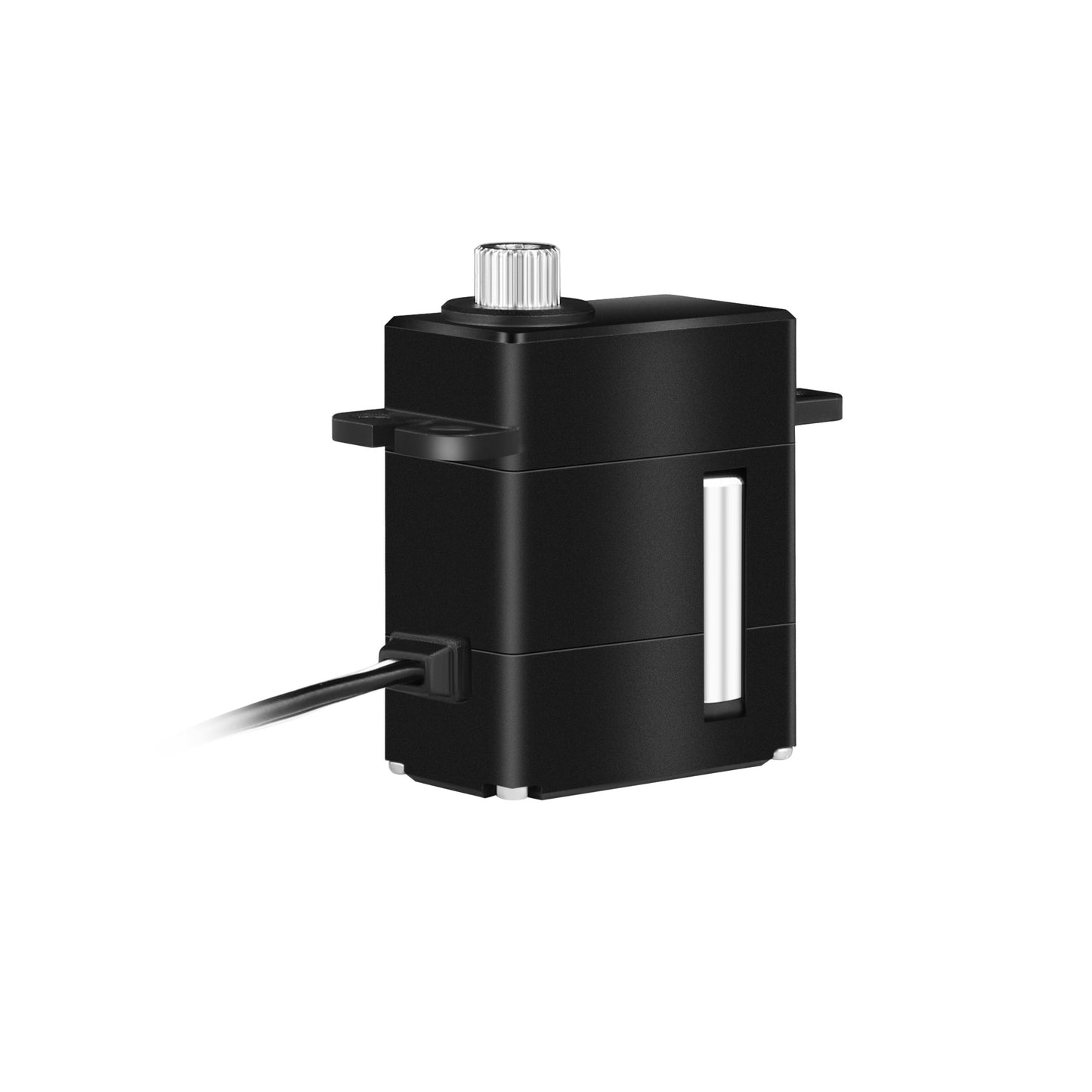

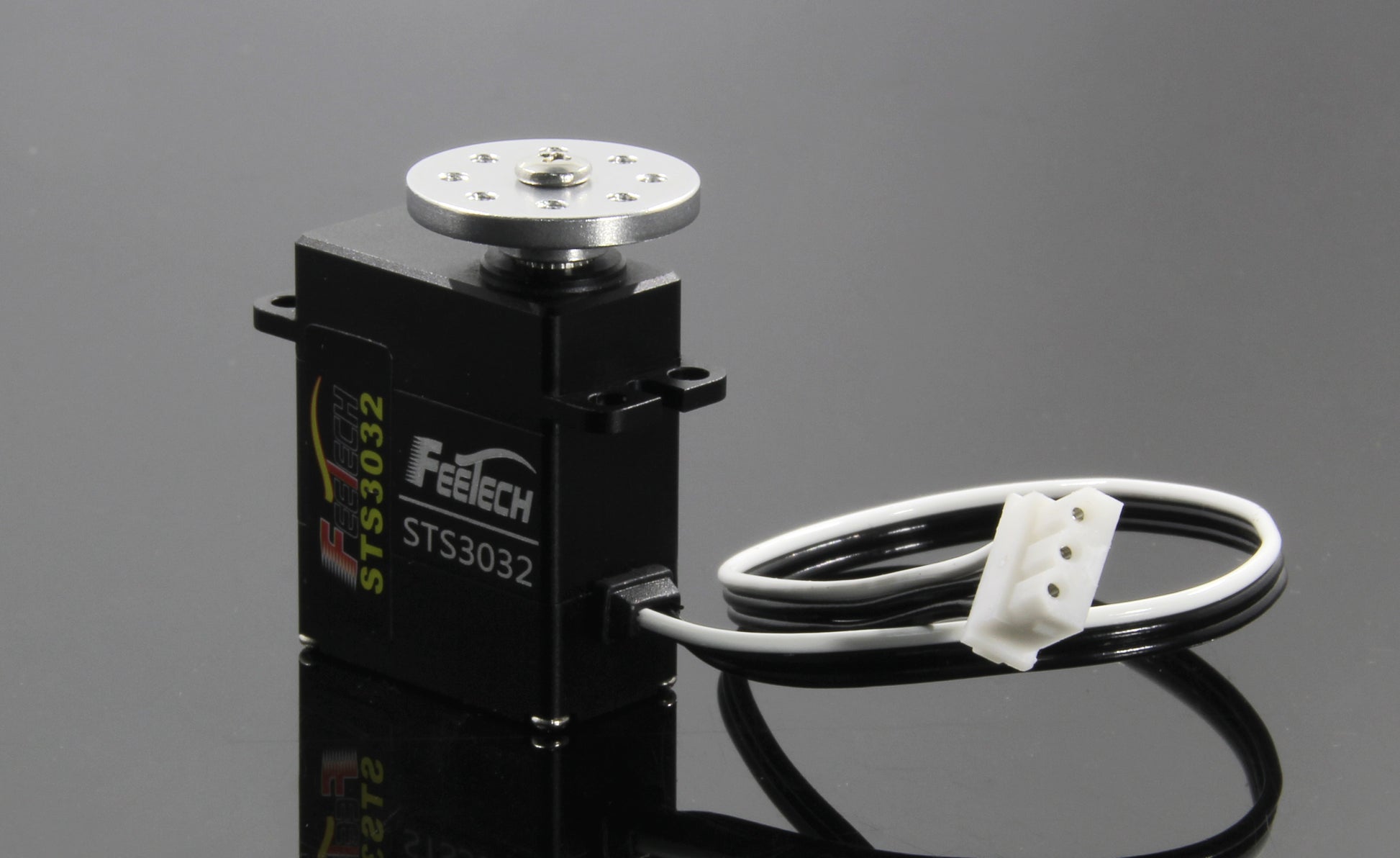

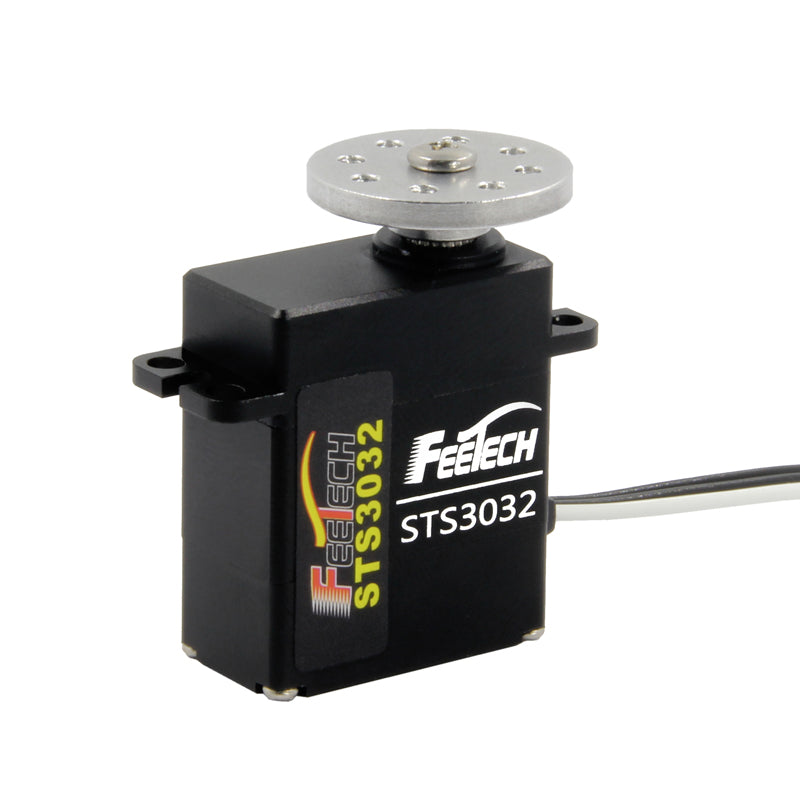

FEETECH STS3032 Smart Digital Servo – 6V 4.5kg.cm 360° Magnetic Encoder TTL Serial Bus Servo

Precision Meets Intelligence – For Advanced Robotics & Automation
The STS3032 Smart Digital Servo from Shenzhen Feetech redefines motion control with its high-precision 12-bit magnetic encoder, 4.5kg.cm torque, and TTL serial communication. Designed for professional robotics, industrial automation, and high-end RC models, this servo delivers unmatched accuracy, customizable controls, and real-time feedback in a compact aluminum housing.

Key Features:

⚙️ Industrial-Grade Performance

• 4.5kg.cm Stall Torque (6V) & 0.09sec/60° Speed – Powerful yet responsive for dynamic applications.

• 360° Continuous Rotation with 0.088° Resolution – Ultra-fine positioning via 12-bit magnetic encoder (no mechanical limits).

• Multi-Mode Operation: Switch between angle servo, speed control (closed/open loop), and step modes for versatile use.

🔌 Smart TTL Serial Control

• Half-Duplex Serial Protocol (1Mbps default) – Daisy-chain multiple servos with customizable IDs (0-253).

• Real-Time Feedback: Monitor load, position, speed, voltage, and temperature via serial commands.

• PID Tunable Algorithm – Optimize response for your project’s needs.

🛡️ Robust & Reliable

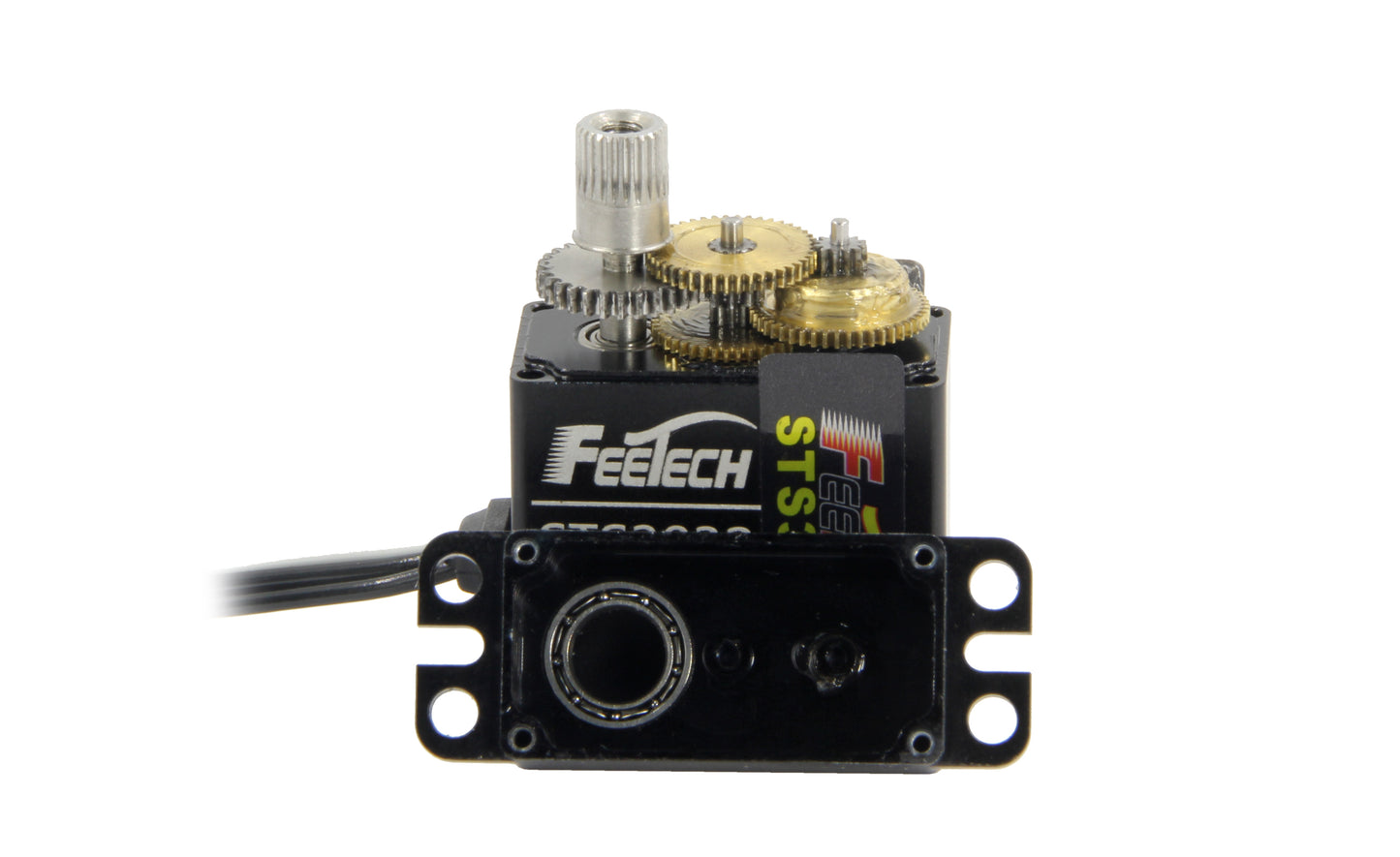

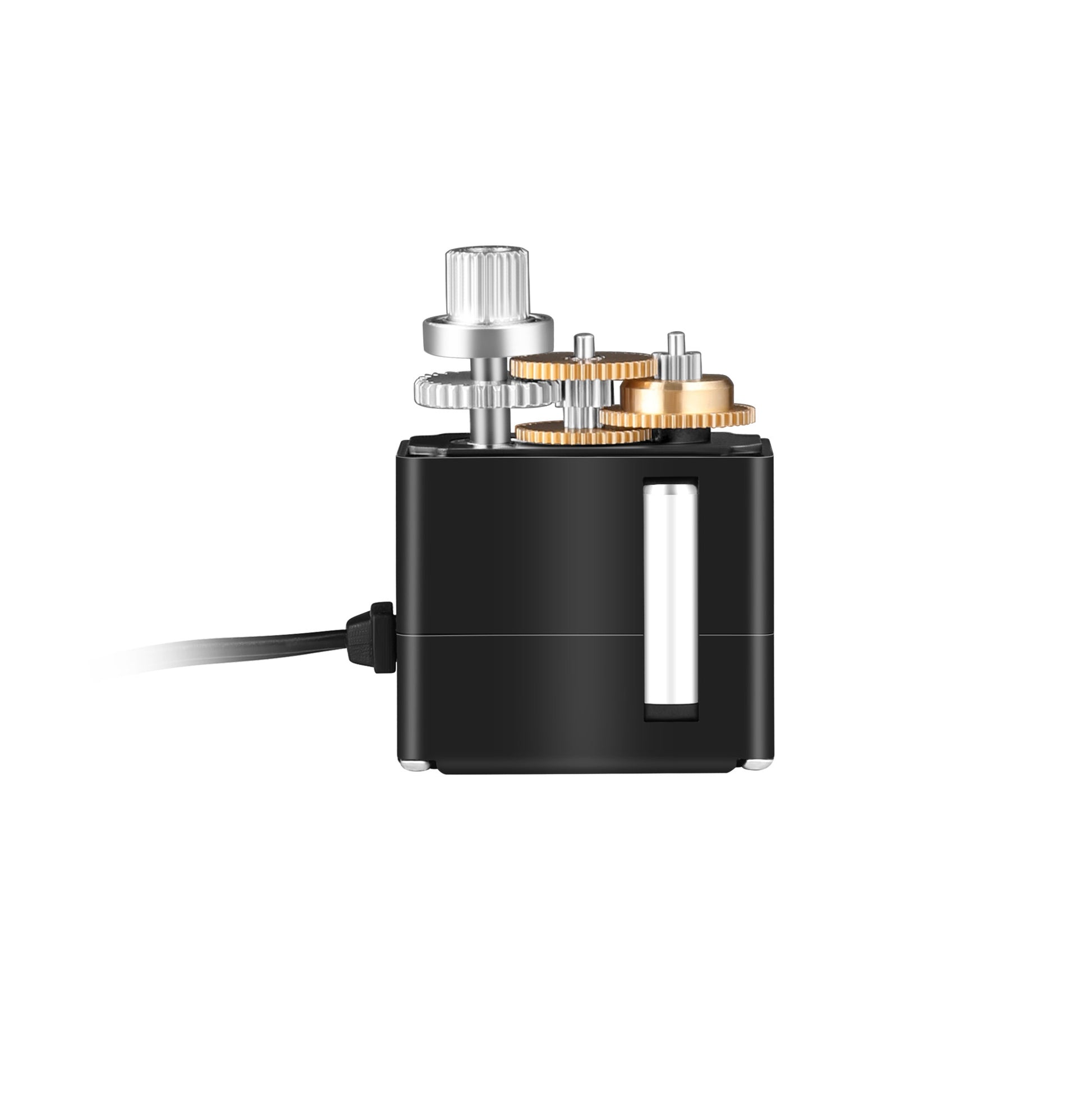

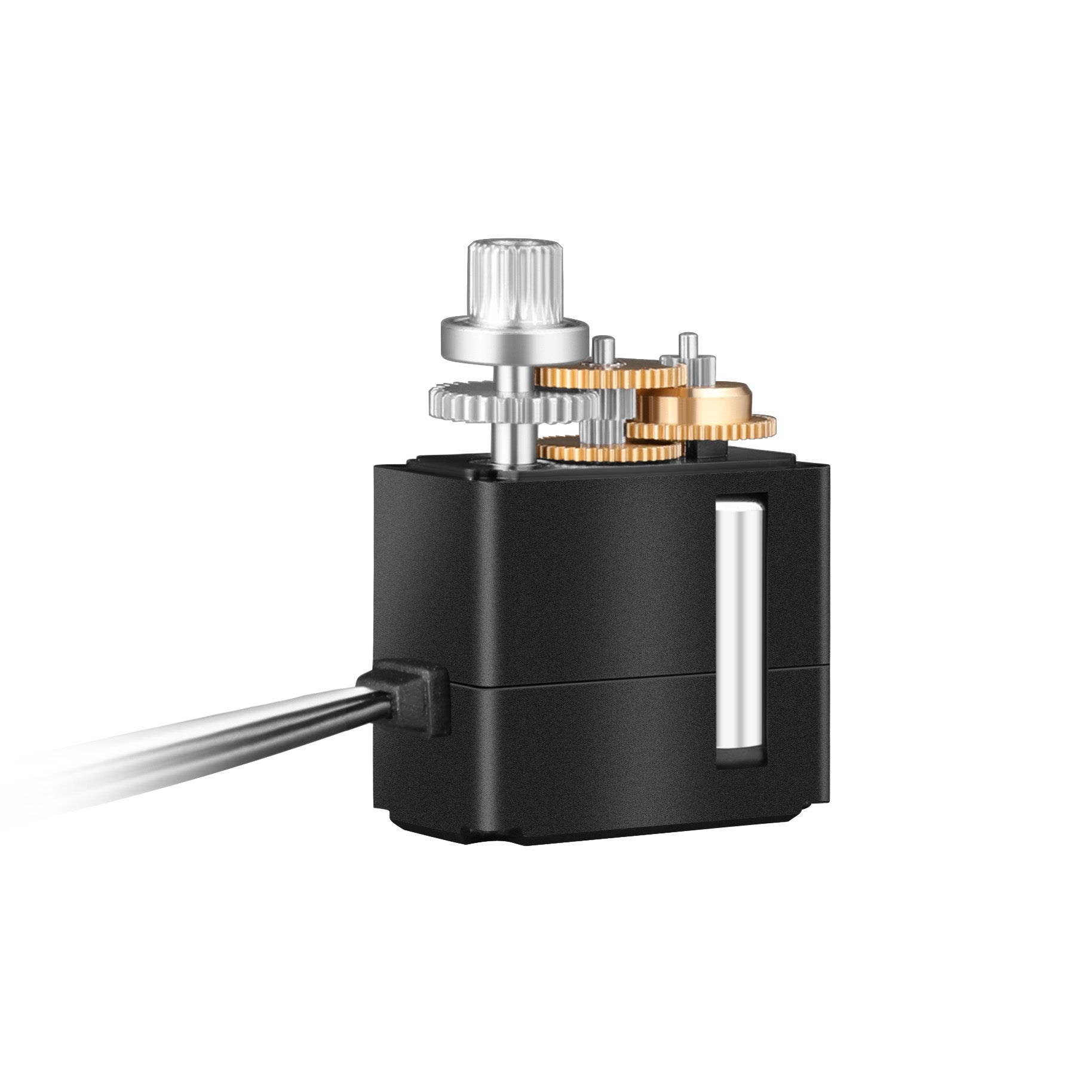

• Metal Gears (Copper+Steel) & Aluminum Case – Built to withstand heavy-duty cycles.

• Advanced Protections: Overload, overvoltage (4V-7.4V range), and thermal shutdown (>70°C).

• 50,000+ Cycle Lifespan – Tested under 1/5 load at 6V.

📊 Technical Highlights:

• Weight: 20.6±1g | Size: 32×12×27.5mm

• Voltage Range: 4V-7.4V (6V recommended)

• Ball Bearings & Coreless Motor – Smooth operation, low noise (<60dB).

• Waterproof: No (IP rating not specified).

Ideal For:

• Robotic arms/joints requiring precise angular control

• AGVs, drones, and CNC accessories

• Research labs and STEM education

• Custom automation projects

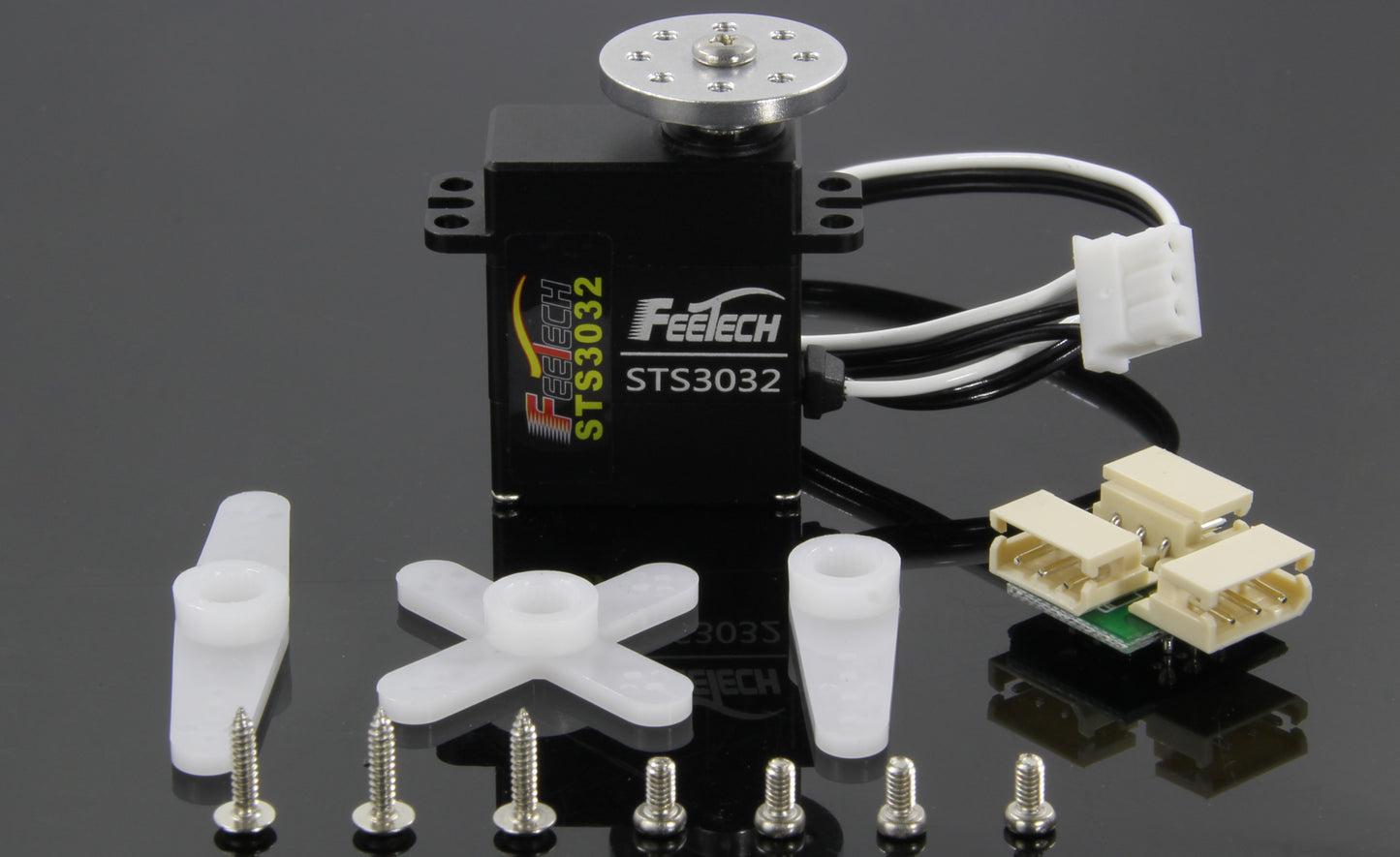

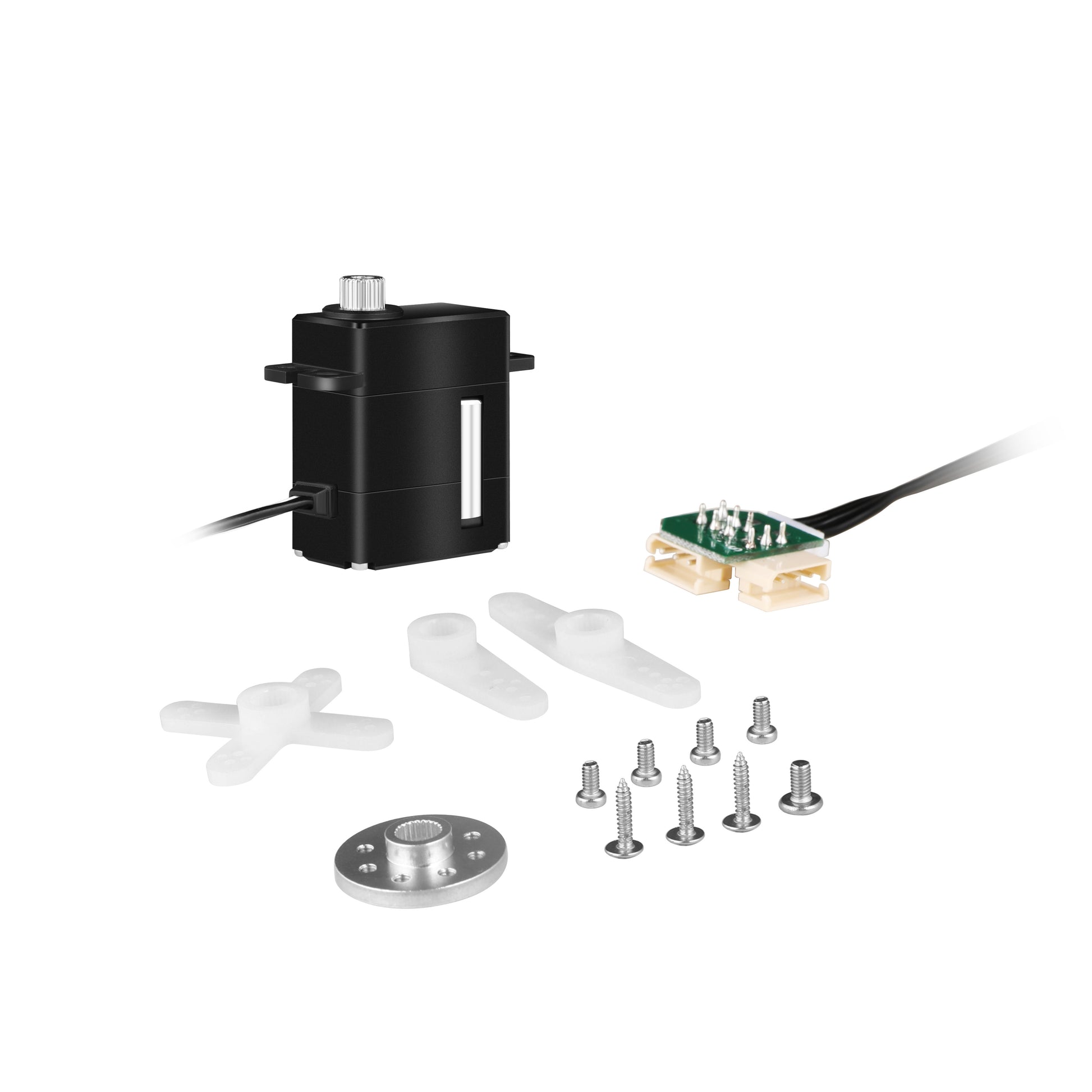

Package Includes:
1× STS3032 Servo | 25T Horn (4.95mm)

Why Choose STS3032?
From its programmable PID controls to multi-turn absolute positioning, this servo bridges the gap between hobbyist and industrial-grade performance. Whether you’re building a collaborative robot or a competition-grade RC car, the STS3032 adapts to your needs with precision and intelligence.

Upgrade to Smarter Motion—Order Now!
