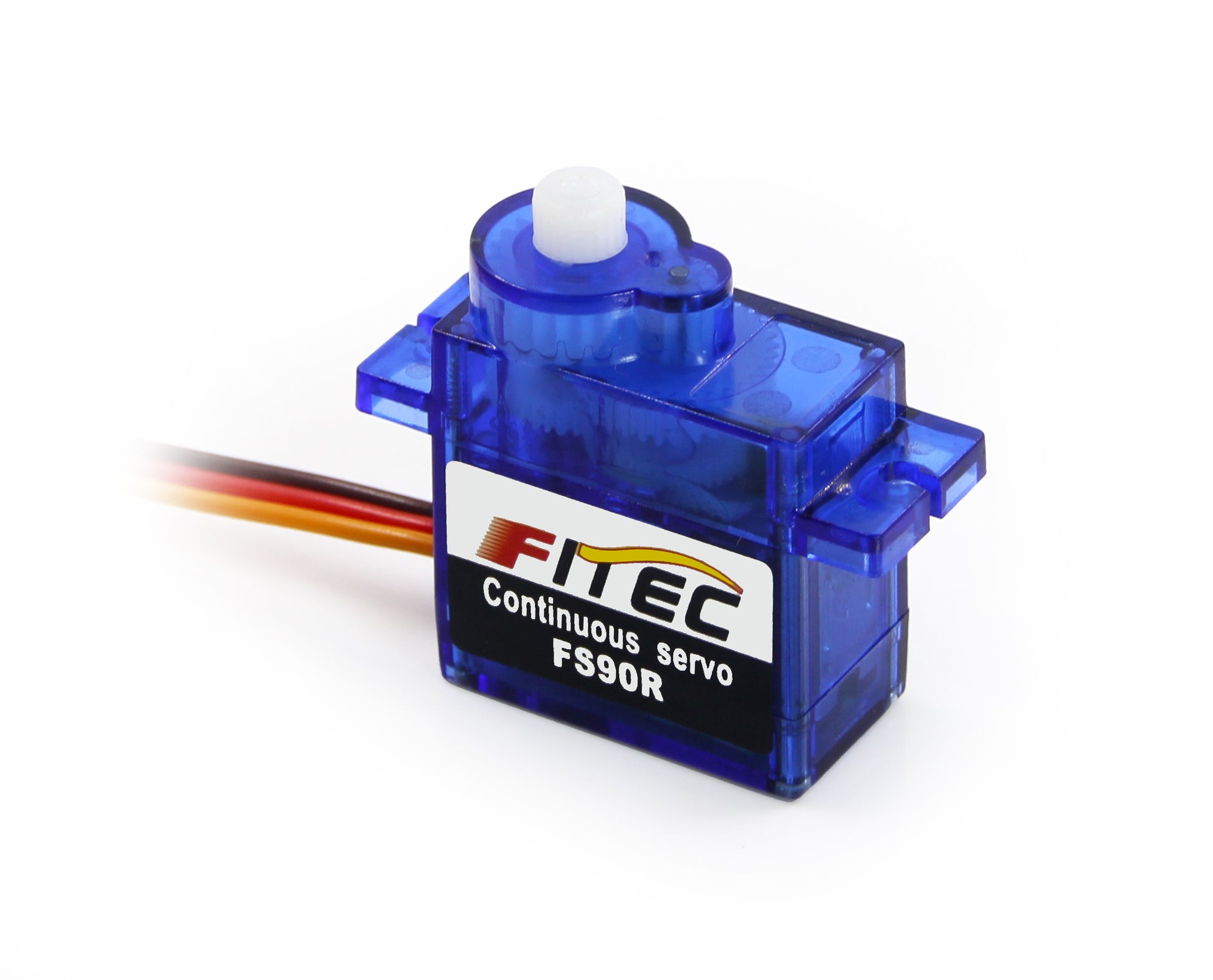

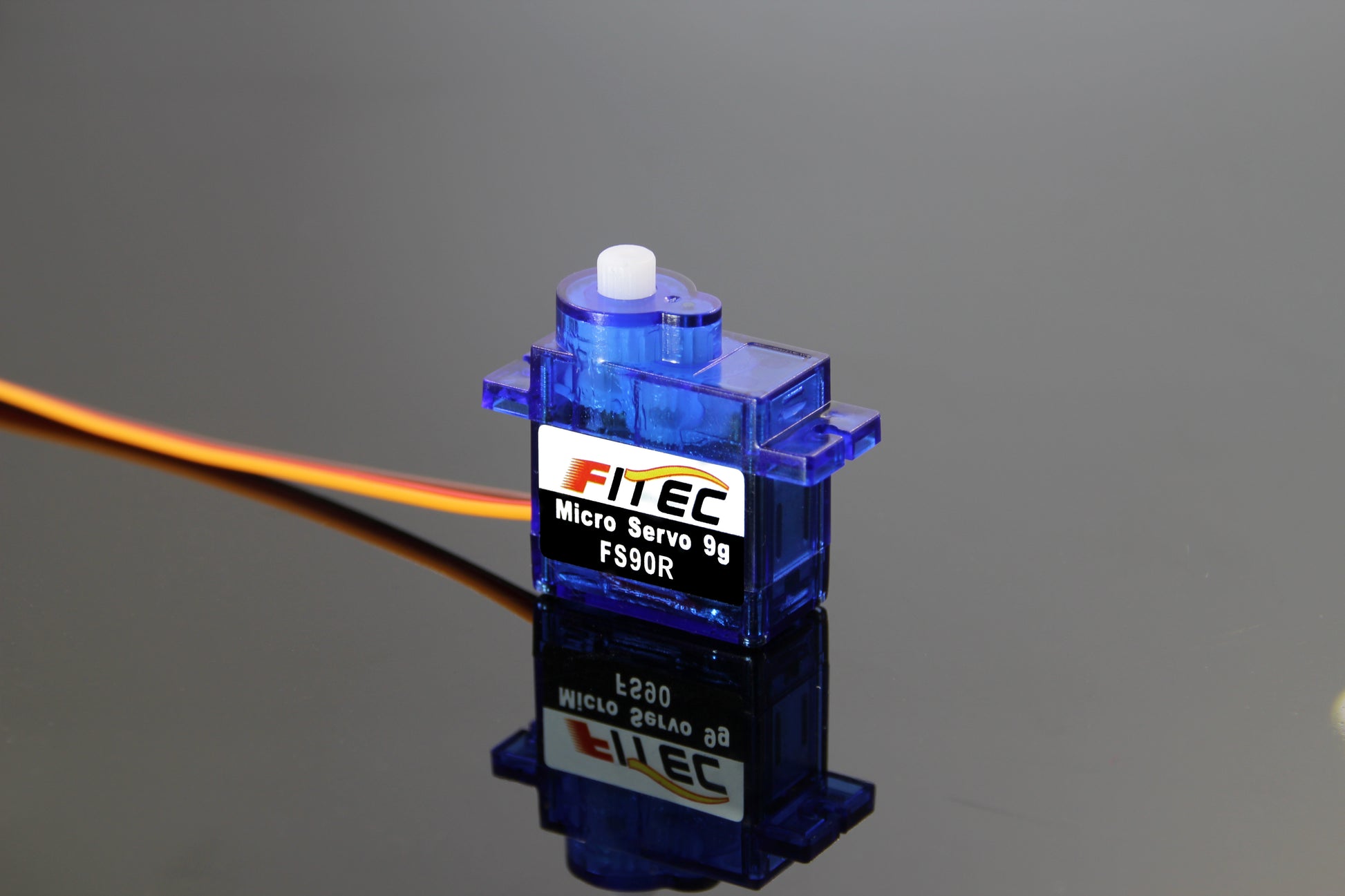

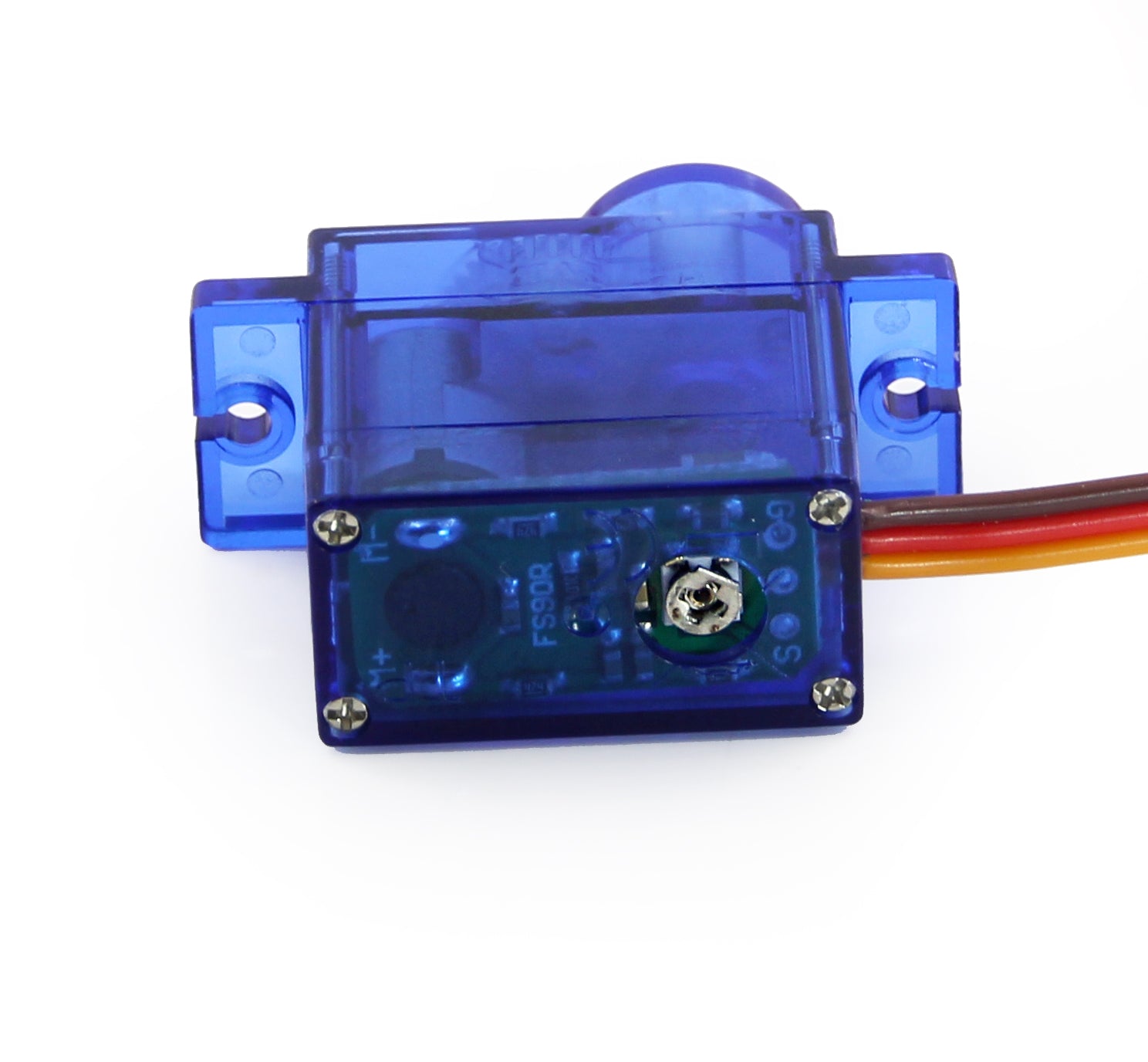

FEETECH FS90R Analog Servo – 6V 1.5kg.cm 360° Continuous Rotation Micro Servo for RC & DIY Robotics

Unlimited Rotation, Endless Possibilities!
The FS90R Analog Servo from Shenzhen Feetech is a compact, lightweight servo designed for applications requiring continuous 360° rotation. Perfect for wheel drives, conveyor belts, or any project needing uninterrupted motion, this servo delivers 1.5kg.cm torque at 6V with smooth, reliable performance.

Key Features:
✔ 360° Continuous Rotation: No angle limits—ideal for wheels, turntables, and automated systems.
✔ High Speed: Up to 150 RPM (at 6V) for quick, responsive movement.

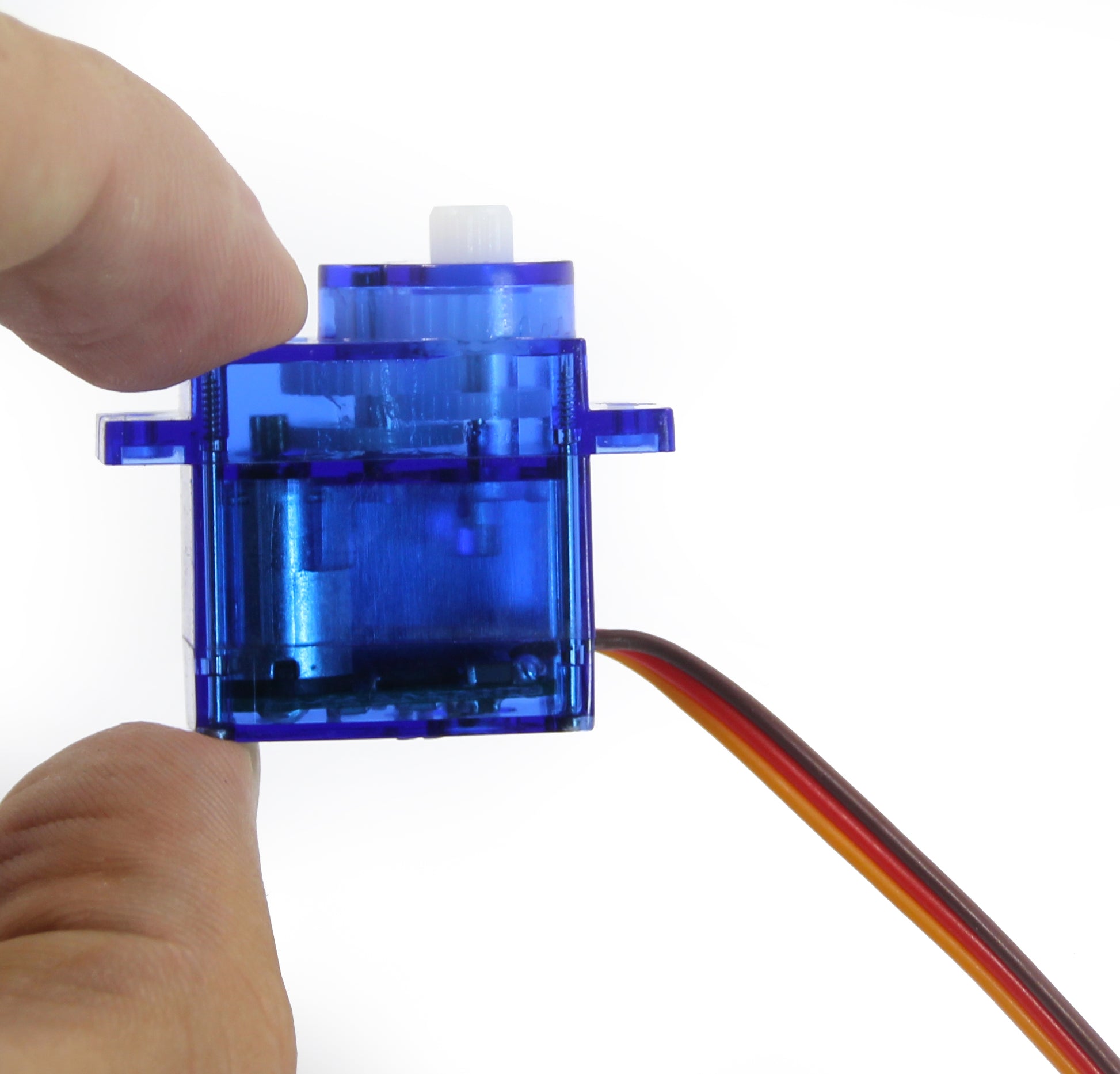

✔ Lightweight & Compact: Just 10±1 grams and 22.5×12.1×27.7mm—fits tight spaces effortlessly.
✔ Durable Design: POM plastic gears and PC plastic case ensure longevity under frequent use.
✔ Analog Control: Pulse width modulation (1200–1800μsec) for precise speed and direction adjustment.
✔ Wide Voltage Range: Compatible with 4V–7.4V (4.8V/6V optimal).
✔ Low Power Consumption: Only 5mA static current at idle.

Specifications:

• Stall Torque: 1.5kg.cm (6V)

• Gear Type: POM plastic

• Connector: JR-type (25cm PVC cable)

• Bearing: None (bushings)

• Certifications: EMC, RoHS compliant

Ideal For:

• RC car wheel drives

• DIY robotics (conveyors, turntables)

• Camera sliders and panning systems

• STEM/educational projects

Package Includes:

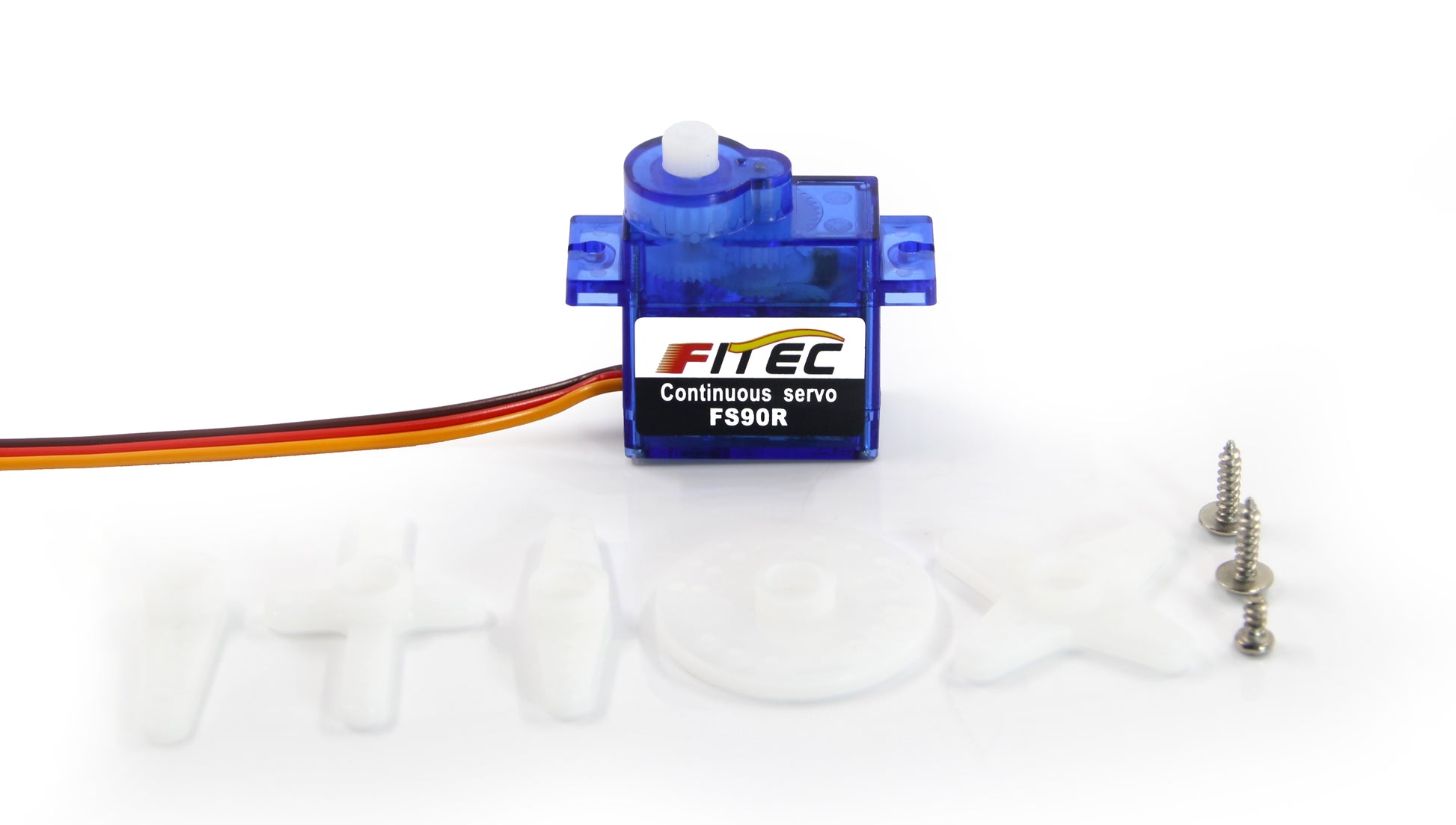

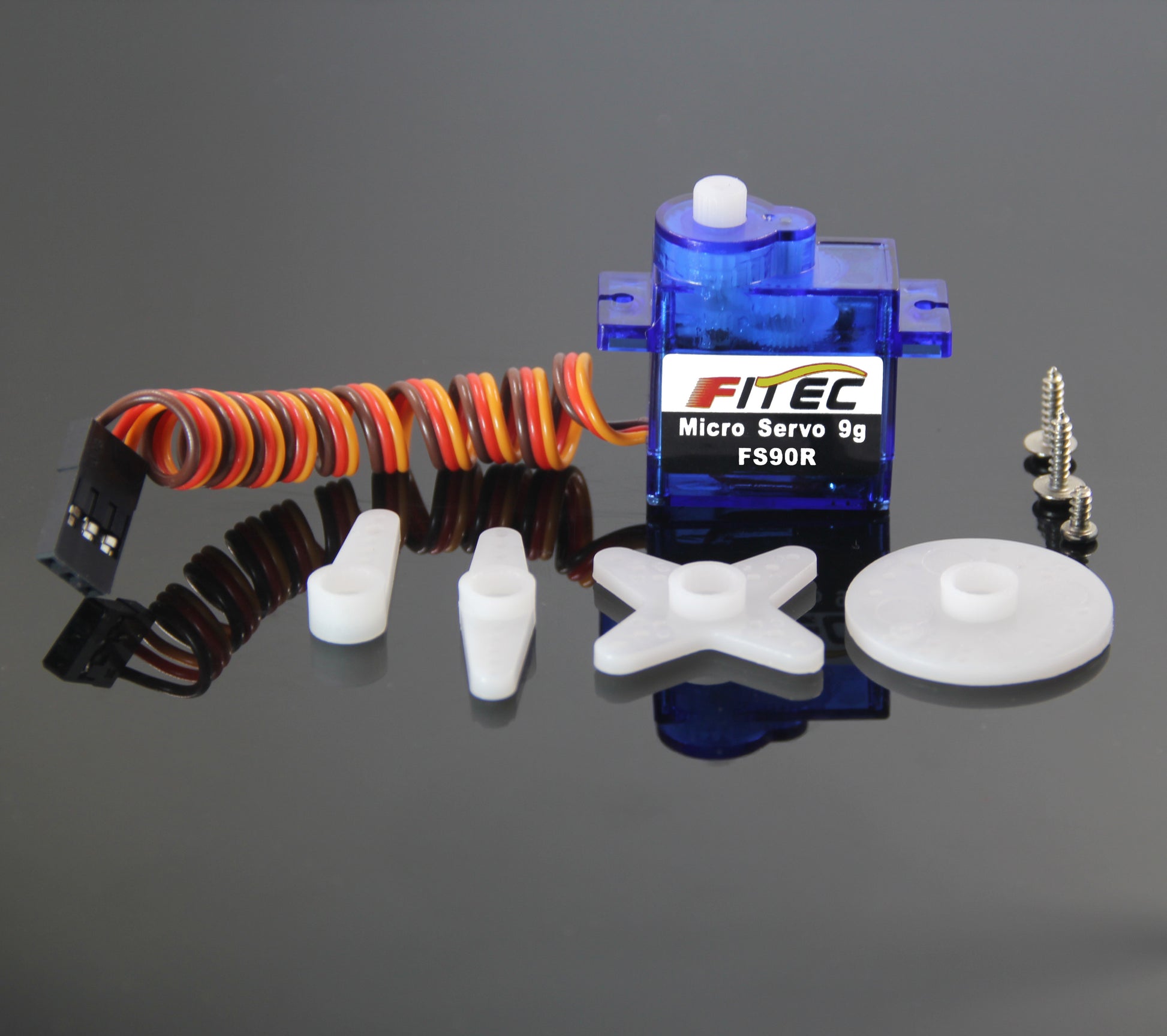

1× FS90R Analog Servo

Why Choose FS90R?
Unlike standard servos, the FS90R’s unlimited rotation opens doors to creative mechanical designs. Its lightweight build and analog simplicity make it a go-to for hobbyists and engineers alike.

Add seamless motion to your next project—order today!
