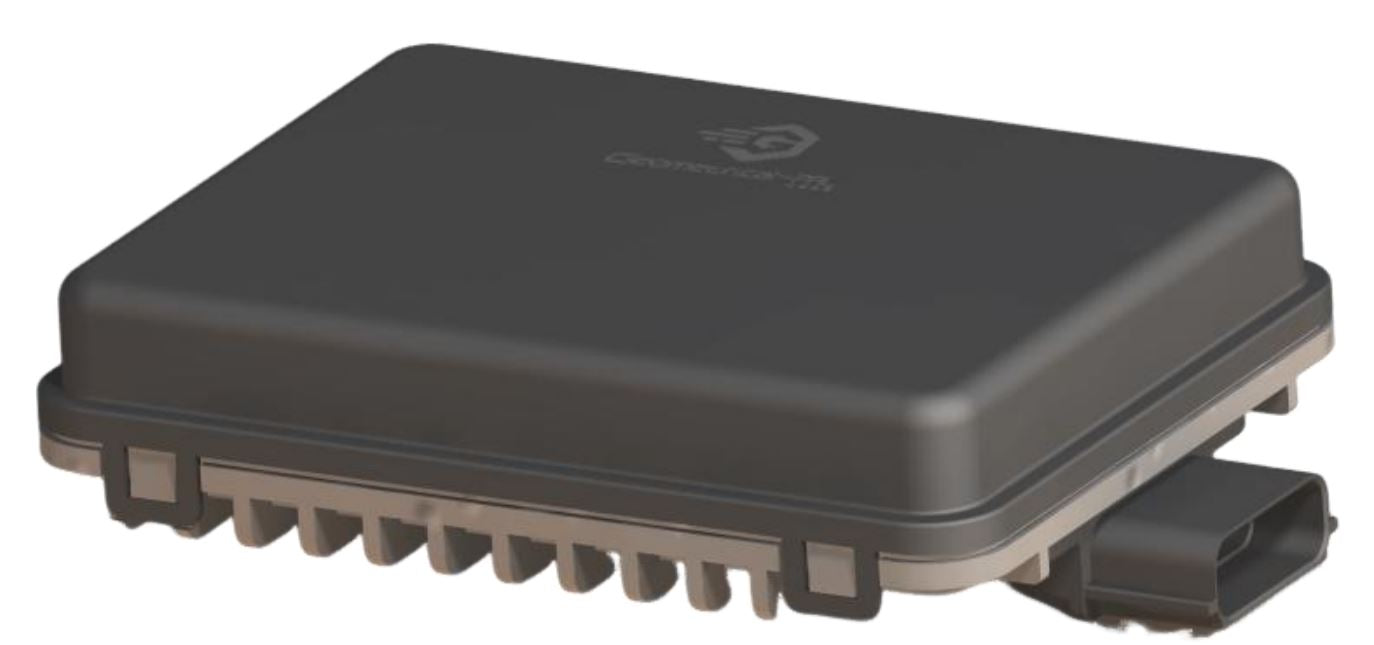

4D Imaging Millimeter-Wave Radar R7872F – High-Performance Forward Radar with Waveguide Antenna

The R7872F is a next-generation 4D imaging millimeter-wave radar featuring an 8T8R waveguide antenna design, 300 m detection range, and superior angular resolution. Optimized for cost and performance, it is engineered for advanced driver assistance systems (ADAS) and L3/L4 autonomous driving applications.

Detailed Product Description：

The R7872F 4D Imaging Millimeter-Wave Radar is a premium automotive-grade forward radar designed to deliver exceptional perception accuracy in all weather and lighting conditions. Equipped with 8 transmit and 8 receive channels and dual Calterah 844 chipsets, it offers a 300 m maximum detection range and industry-leading 0.8° horizontal resolution with 1.5° vertical resolution.

The radar’s waveguide antenna architecture ensures low-loss, high-gain performance, while its cost-optimized hardware platform meets the rigorous demands of large-scale automotive production. Its robust IP6K9K & IP67-rated housing ensures durability under harsh environmental conditions.

Leveraging cutting-edge 4D point cloud generation, object detection (OD), and advanced interference mitigation algorithms, the R7872F enables precise detection of vehicles, pedestrians, and obstacles—including small, low-height, or partially occluded targets—making it ideal for ADAS and autonomous driving perception stacks.

Key Features

• High-Performance Sensing – 8T8R waveguide antenna with dual Calterah 844 chipsets for superior signal quality.

• Extended Detection Range – Up to 300 m for vehicle targets, optimized for high-speed scenarios.

• High Angular Resolution – 0.8° horizontal / 1.5° vertical resolution for accurate target contouring.

• All-Weather Reliability – Performs in rain, fog, snow, and low-light conditions.

• Advanced Object Differentiation – Detects and classifies small, low, and irregular obstacles with high confidence.

• Interference Mitigation – Stable performance under high mutual radar interference conditions.

• Automotive-Grade Durability – IP6K9K & IP67 protection, wide temperature range (-40 °C to +85 °C).

Technical Specifications

Applications

• Forward collision warning and mitigation

• Adaptive cruise control (ACC)

• Automatic emergency braking (AEB)

• Lane change and cut-in detection

• Obstacle detection in complex urban environments

• L3/L4 autonomous driving perception

Compliance & Standards

• Designed to meet global automotive safety standards

• Supports NCAP active safety requirements

• Optimized for integration into domain controllers
